Beam On Area Ratio Calculator

The Beam On Technology Area Ratio Calculator gives you the ability to quickly calculate the stencil area ratio of an opening. It allows you to determine an aperture’s solder paste transfer efficiency and the optimum foil thickness needed.

App Store Play Store

If you have a stencil order with us,
we have provided a link to check your order status.

Features

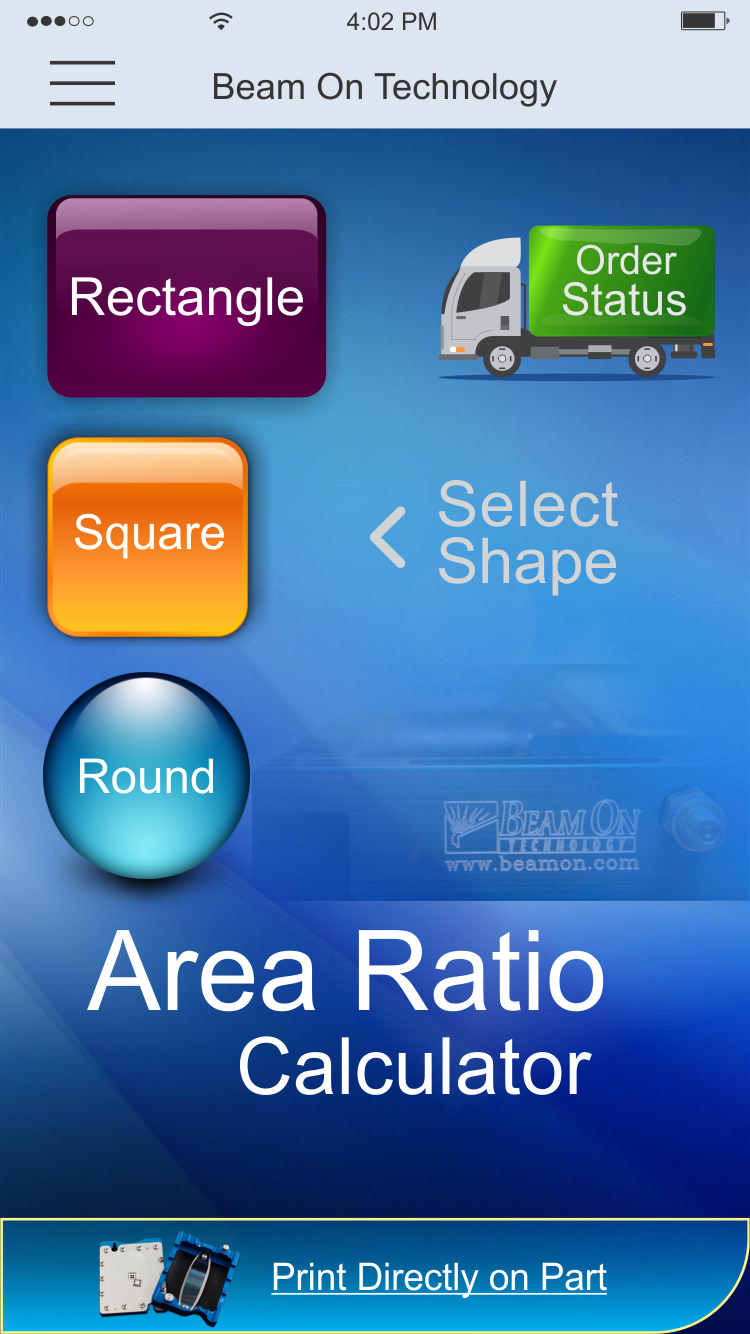

You can calculate the Area ratio for Rectangle, Square and Round shapes.
Aperture size can be entered in mils or millimeters.

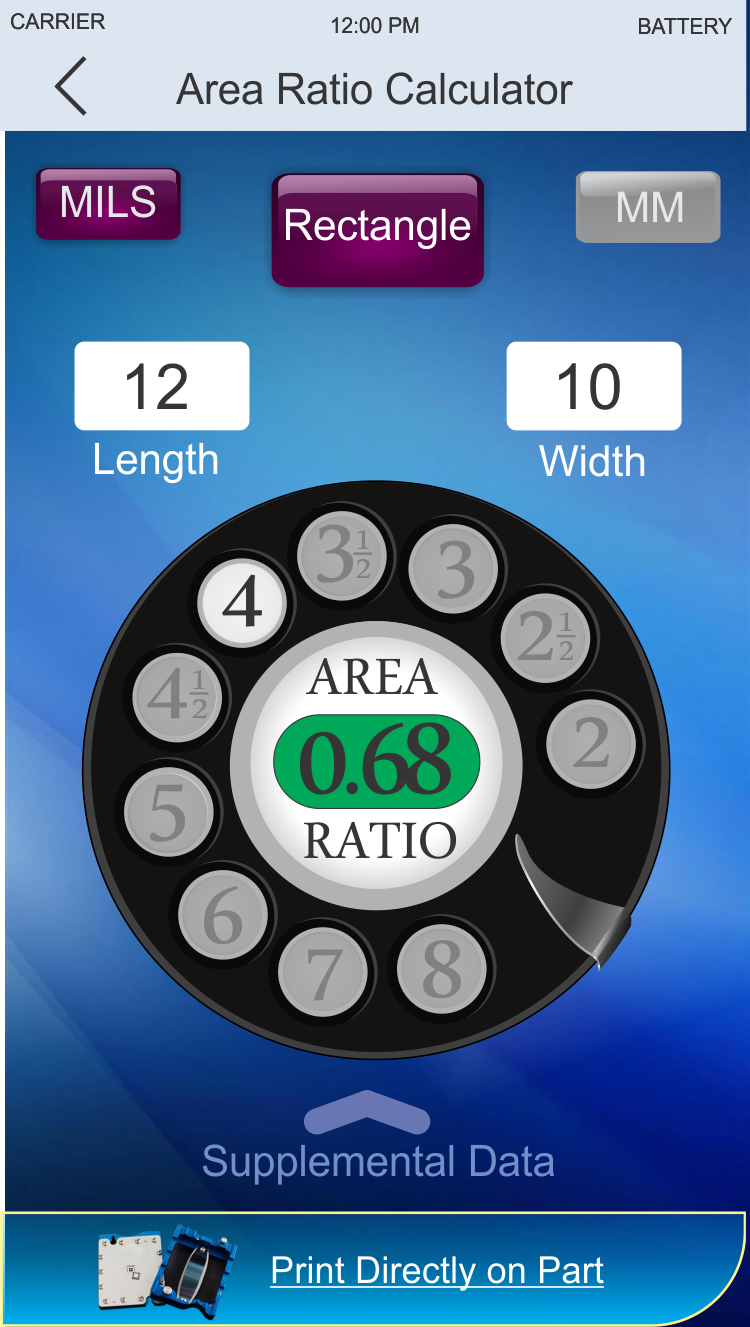

Aperture size and foil thickness can be independently manipulated to determine optimal paste release.
The app also provides paste volume calculation and aspect ratio calculation.
For solder paste selection the app will also indicate the recommended powder size for the indicated opening.

• Area Ratio
• Paste Volume
• Stencil Order Status

• Aspect Ratio
• Paste Type

Order Status

Customers who place orders with BOOTS2, Beam On Technology’s stencil order system can track the progress of their stencils using the Order Status button at the top right corner of the application.

Supplemental Data

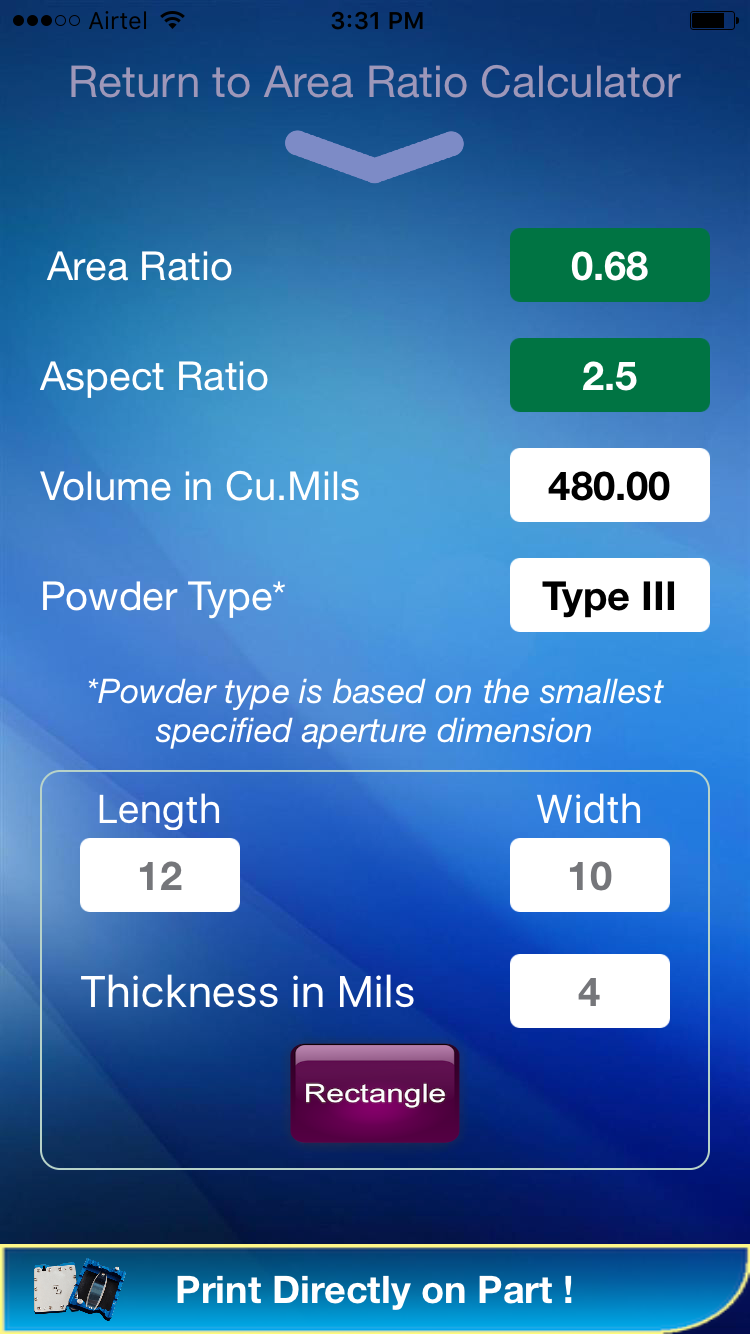

App Provides you the below information pertaining to the Aperture

• Area Ratio
• Paste Volume

• Aspect Ratio
• Paste Type
